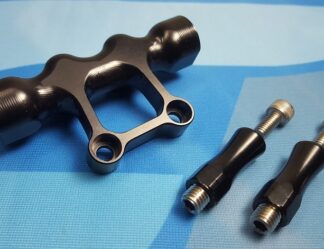

13B-REW Light Primary Fuel Rail

From: $139.95

Injector Dynamics Injectors

Bundle and Save!

High Flow Radius ORB Union × 2

AN Fittings for rail ends

SKU: Rail.FD.LT.P.34 Category:

Description

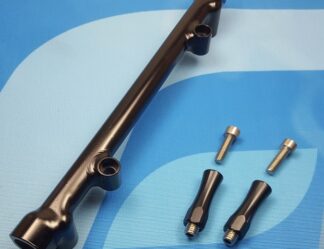

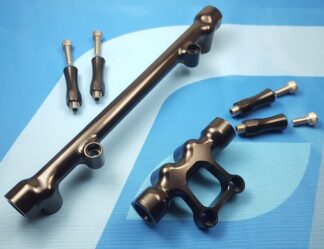

Introducing the New Light FD Fuel Rails.

These fuel rails have been designed to be the lightest, most compact, no compromise fuel rails available for the 13B-REW.  Utilizing CNC 3D surfacing, a method not typically used for production applications due to the high time consumption, we designed the rails to have a mere 1.5mm (.060″) wall thickness while maintaining ample structural integrity. The result is a fuel rail that weighs a feather light 1.8oz for the primary.

No Stones Left Unturned.

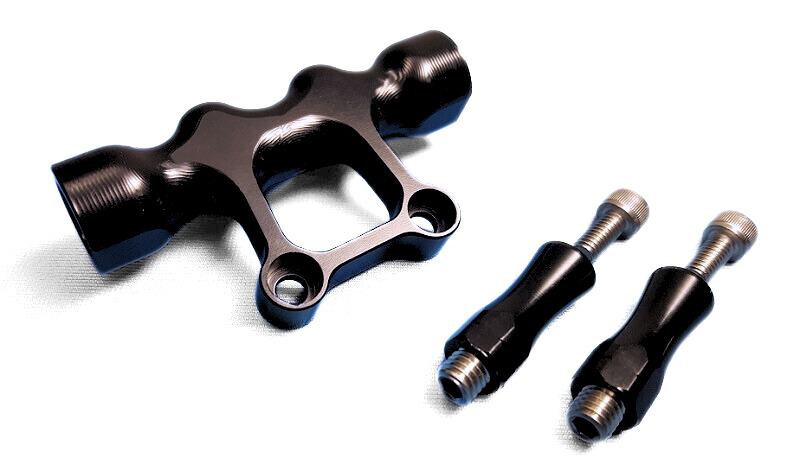

We updated the mounting hardware to simplify installation and reduce weight further. The previous long M8 bolts have been replaced by a spacer with an integrated M8 stud. The hollow spacer threads into the motor using a 12mm hex then reduces to an M6 for fastening the fuel rail.

Specifications:

  • CNC’ed (In-House!) from 6061 T6 Aluminum
  • Black Type II Anodize
  • Stainless Hardware
  • 0.515″ Fuel Bore
  • -6 ORB Inlet/Outlet with 20mm Flats to Aid Installation
  • Designed exclusively for 34mm injector fitment (but will accomodate 48mm)

Additional information

Weight .5 lbs
Dimensions 6 × 4 × 4 in

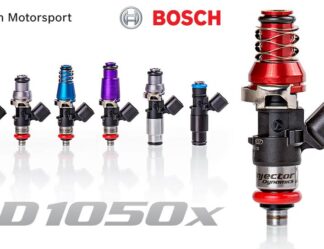

Injector Dynamics Injectors

Weight .2 lbs
Dimensions 4 × 1 × 1 in
Model

ID1050XDS, ID1300XDS, ID1750XDS, ID2600XDS

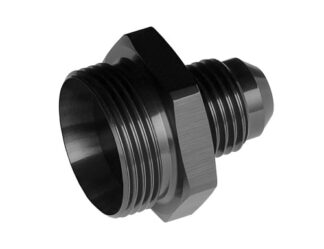

High Flow Radius ORB Union

Weight .1 lbs
Dimensions 1 × 1 × 1 in
AN Size

-6 AN, -8 AN
