FC3S 13B-T Rail Set

From: $285.95

Injector Dynamics Injectors

High Flow Radius ORB Union

SKU: Rail.FC.Set Category:

Description

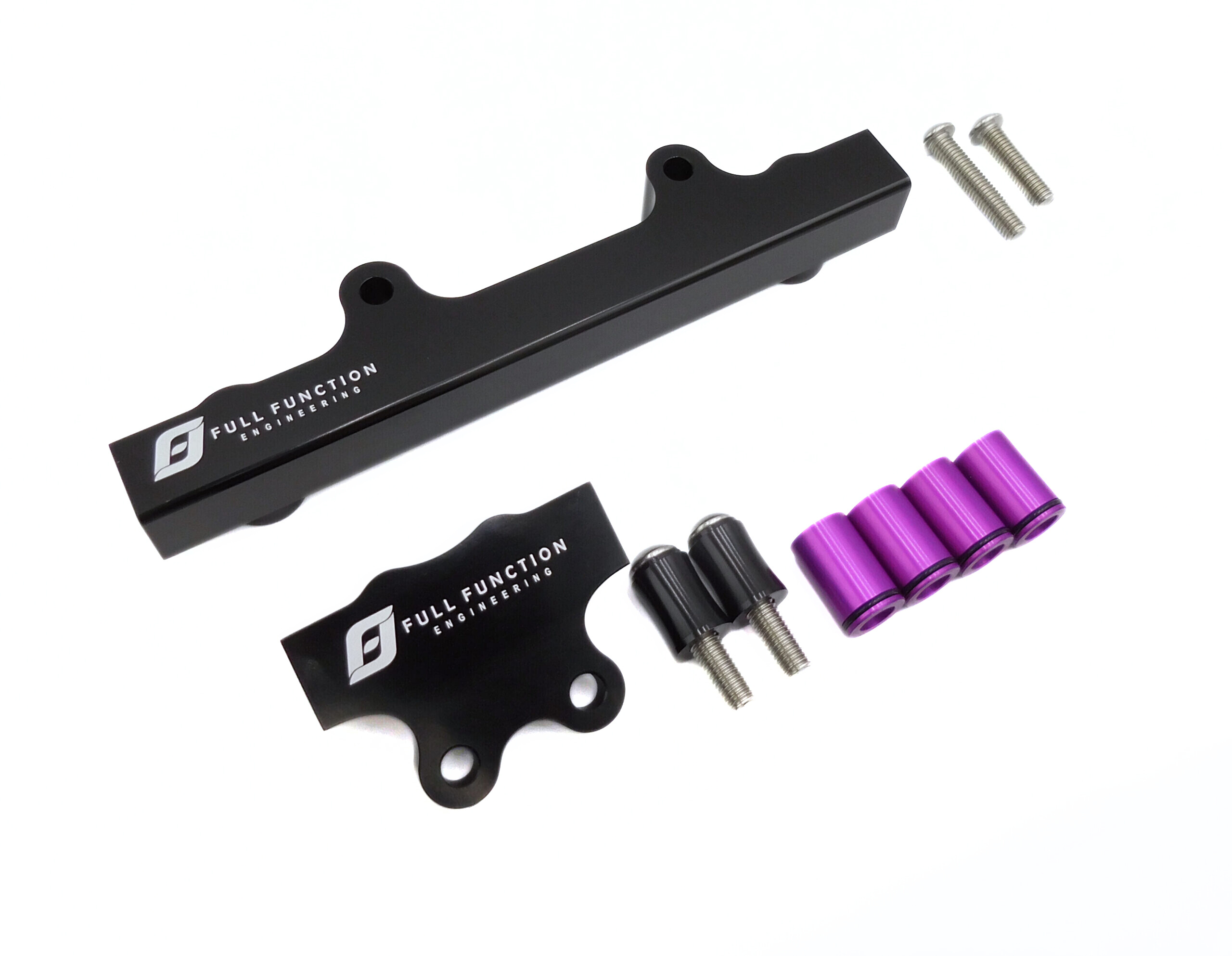

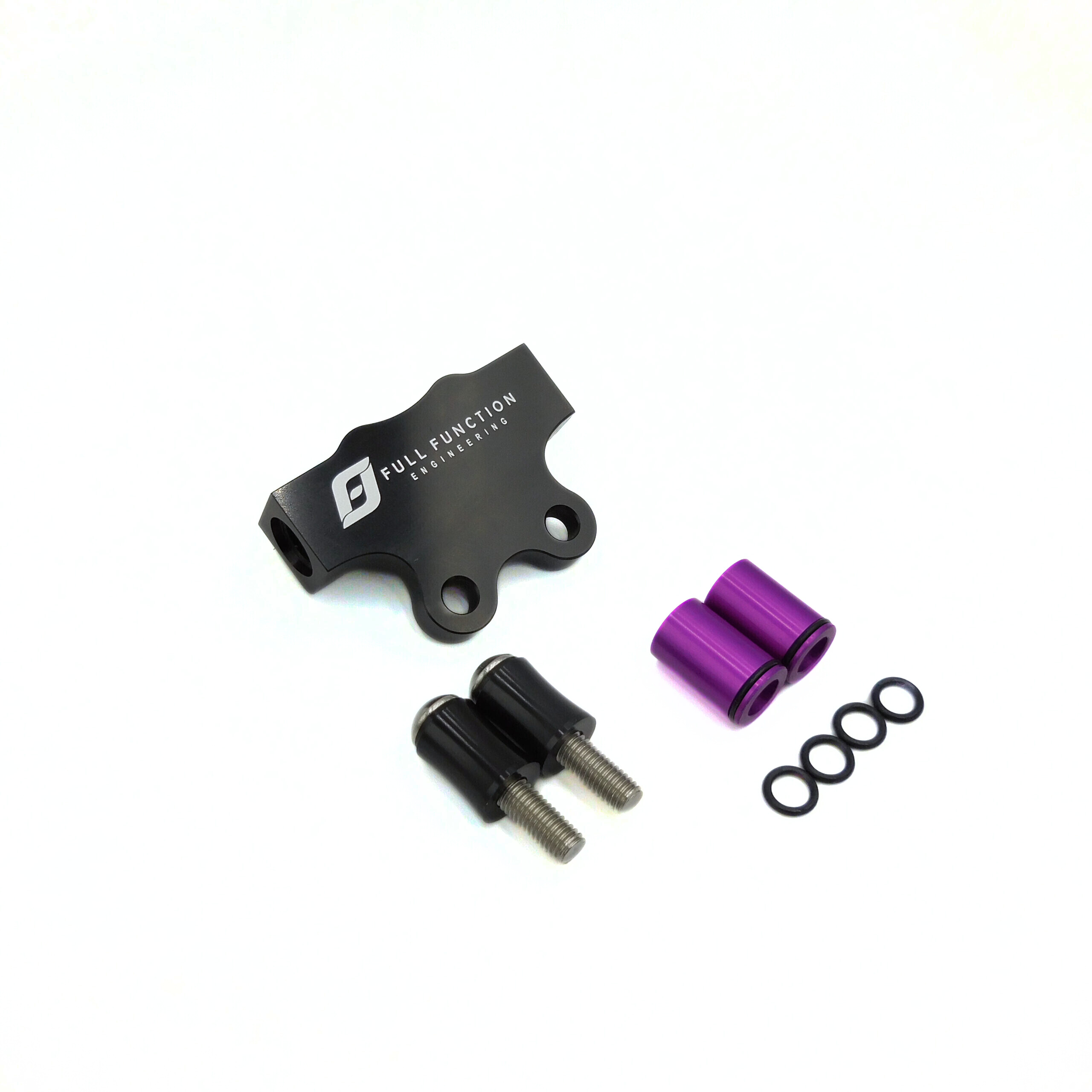

13B-T FC3S Primary and Secondary Fuel Rail

The diffusers must be removed.

Includes Lower O-Ring Inserts

Black Color Only

48mm Primary Fitment Only

Fits: 86-91 Mazda RX7 (S4 and S5 13B-T) w/ Aftermarket Top Feed Injectors (14mm o-ring, 48mm length)

Injector Dynamics Fitment

RX-7 87-92 (14mm)

1050.14.48.14

1300.14.48.14

1750.14.48.14

2600.14.48.14

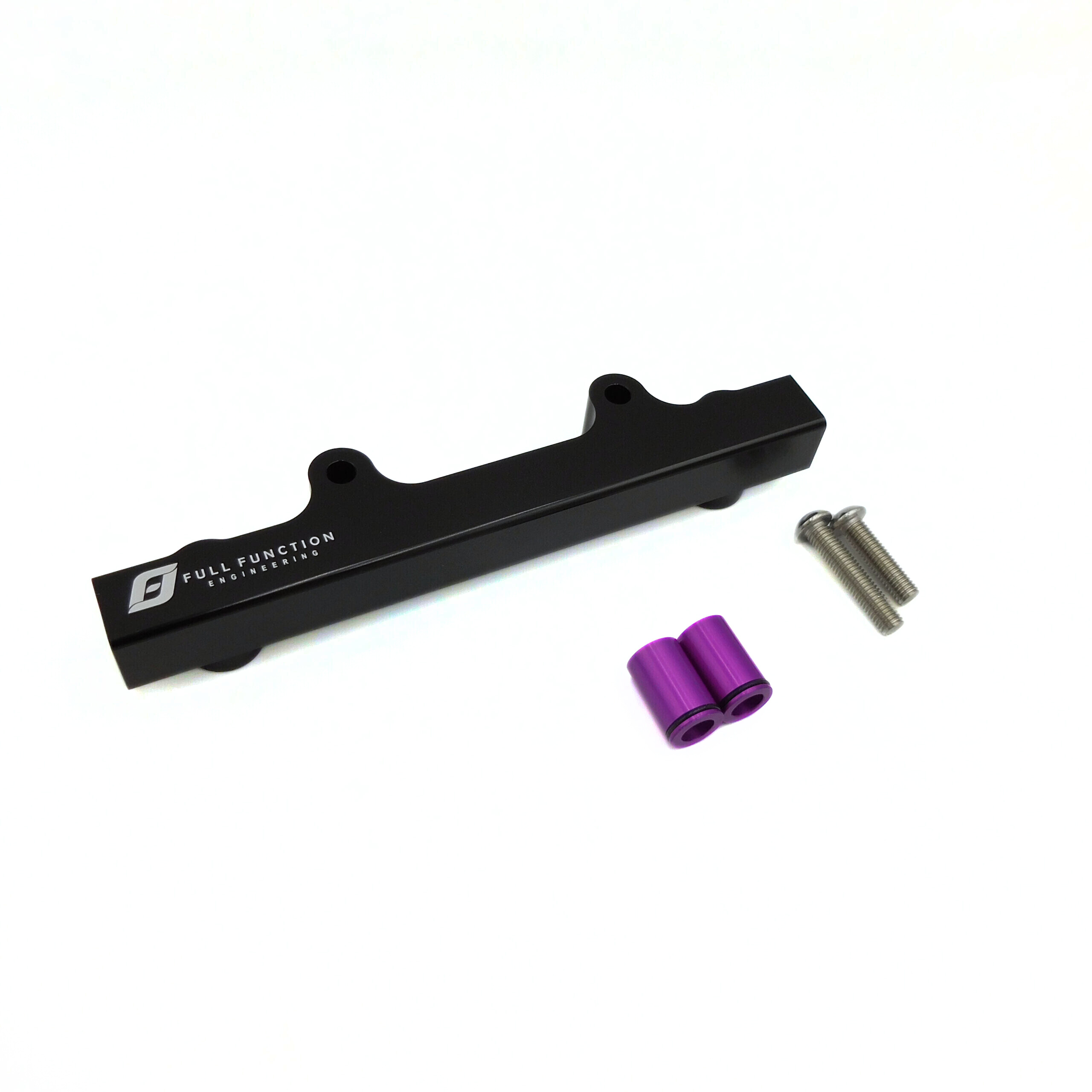

13B-T FC3S Secondary Fuel Rail

Fits: 86-91 Mazda RX7 (S4 and S5 13B-T) w/ Aftermarket Top Feed Injectors (14mm o-ring, 48mm or 60mm length)

Injector Dynamics Fitment

RX-7 S4 87-88 (14mm)

1050.14.60.14 with FD Blue Lower Insert

1300.14.60.14 with FD Blue Lower Insert

1750.14.60.14 with FD Blue Lower Insert

2600.14.60.14 with FD Blue Lower Insert

RX-7 S5 89-92 (14mm)

1050.14.48.14 with FC Purple Lower Insert

1300.14.48.14 with FC Purple Lower Insert

1750.14.48.14 with FC Purple Lower Insert

2600.14.48.14 with FC Purple Lower Insert







1/2″ Bore – Suited for high horsepower needs
O-ringed end fittings – No more Teflon tape/worn threads!
Centering Spacers – Ensuring injectors are centered for no air/fuel leaks
Stainless Hardware – High strength/corrosion resistant

13B-T’s require different lengths/combinations depending on S4 or S5.

Save and add Injector Dynamics injectors!

Injectors supplied with our o-ringed lower inserts when purchased with rail.

Additional information

Weight 1 lbs
Dimensions 10 × 6 × 4 in
FC Secondary Rail Fitment

S4 (86-88), S5 (89-91)

Injector Dynamics Injectors

Weight .2 lbs
Dimensions 4 × 1 × 1 in
Model

ID1050XDS, ID1300XDS, ID1750XDS, ID2600XDS

High Flow Radius ORB Union

Weight .1 lbs
Dimensions 1 × 1 × 1 in
AN Size

-6 AN, -8 AN
