FFE SP2 Absolute Pressure Sensors


SKU: N/A Category:


Full Function Engineering

SP2 Absolute Pressure Sensors

NOTE: Absolute Pressure Sensors are intended for atmospheric referenced sources.  I.E. Intake manifold, barometric, or exhaust pressure.  A gauge sensor should be used for liquid line pressure such as fuel, oil, coolant pressure.

Thread: 1/8″ NPT

Housing Material: 316 Stainless

Response Time: <1ms

Output: .5-4.5 VDC

Input: 5 VDC

Operating Pressure:

SP2-3A : 0-300 kPa (0-43.51 Psi)

SP2-5A : 0-500 kPa (0-72.52 psi)

SP2-7A : 0-700 kPa (0-101.52 Psi)

Operating Temp: -40C – 125C ( -40F- 257F)

Compensated temp. Range: 0C ~ 85C (32F ~ 185F)

Operational Media: Liquid/Gas

Shock: No Change @ 10g RMS (20Hz-2000Hz)

Impact: 100g ,11ms (Max)

Accuracy: 0.5% FS

Non-Linearity: 0.05%FS (Typical) ,0.025%FS (Max)

Repeatability: 0.05%FS (Typical),  0.075%FS (Max)

Hysteresis: 0.05%FS (Typical), 0.075%FS (Max)

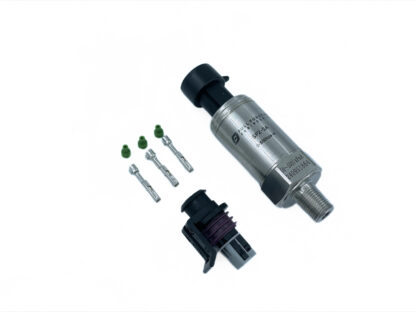

Each sensor has been individually calibrated and tested and include a serial matched data sheet as well as 3 pin female connector kit.

Additional information

Weight .25 lbs
Dimensions 5 × 4 × 3 in
Absolute Pressure Range

0-300 kPa (0-43.51 Psi), 0-500 kPa (0-72.52 Psi), 0-700 kPa (0-101.52 Psi)
