FFE SP2 Gauge Pressure Sensors


SKU: N/A Category:


Full Function Engineering

SP2 Gauge Pressure Sensor

NOTE: Gauge sensors should be used for liquid line pressure such as fuel, oil, or coolant pressure.  An absolute sensor is intended for atmospheric referenced sources.  I.E. Intake manifold, barometric, or exhaust pressure.

Thread: 1/8″ NPT

Housing Material: 316 Stainless

Response Time: <1ms

Output: .5-4.5 VDC

Input: 5 VDC

Operating Pressure:

  SP2 -10G : 0-1000 kPa (0-145.04 Psi)

SP2- 140G : 0-14000 kPa (0-2030 Psi)

Operating Temp: -40C – 125C ( -40F- 257F)

Compensated temp. Range: 0C ~ 85C (32F ~ 185F)

Operational Media: Liquid/Gas

Shock: No Change @ 10g RMS (20Hz-2000Hz)

Impact: 100g ,11ms (Max)

Accuracy: 0.5% FS

Non-Linearity: 0.05%FS (Typical) ,0.025%FS (Max)

Repeatability: 0.05%FS (Typical),  0.075%FS (Max)

Hysteresis: 0.05%FS (Typical), 0.075%FS (Max)

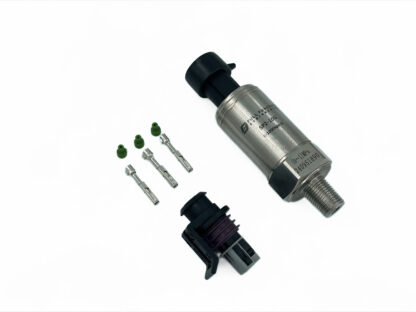

Each sensor has been individually calibrated and tested and include a serial matched data sheet as well as 3 pin female connector kit.

Additional information

Weight .25 lbs
Dimensions 5 × 4 × 3 in
Absolute Pressure Range

0-1000 kPa (0-145 Psi), 0-14000 kPa (0-2030 Psi)
